1 2 3 4 5 6 7 8 9 10

TECHNICAL DETAILS

engine 1064 ccm 2 Ventiler 1064 ccm 2 Ventiler
valve train push rods push rods
bore / idle stroke 92 or 95 x 80 or 81,2 92 or 95 x 80 or 81,2
capacity 1064 or 1151 1064 or 1151
compression 11 11
power 95 to 110 PS 95 to 110 PS
torque 108 to 120 108 to 120
fuel management carburetor Dellorto PHM 40 carburetor Dellorto PHM 40
clutch 2 discs 10 spring hydraulic 2 discs 10 spring hydraulic
gearbox 5 gear 5 Gang pinned
gear shaft drive factory standard Kardan
frame Tonti Tonti
front suspension verschiedenste USD Gabeln Marzocchi, Öhlins alles ist möglich verschiedenste USD Gabeln Marzocchi, Öhlins alles ist möglich
rear suspension Walweise Öhlins/Wilbers/Icon etc. Walweise Öhlins/Wilbers/Ico
front brakes Brembo/Behringer Brembo/Behringer
rear brakes Brembo/Behringer Brembo/Behringer
wheels front / rear 3,0x17 und 4,5 x17 3,5x17 und 6,0 x 17
tires front / rear 110/70/17 160/60/17 120/70/17 200/50/17
lenght / width / height 2200x760x1000 2250x760x1000
height of seat 760 760
weight empty 175 190
tank capacity 18 21
Radical Guzzi custom parts V-oilpan, hydraulic clutch, exhaust system, Aluminum tank, Seat, fork clamps, footrests, lamp holders, brake support, adapter front brake, adapters for the brake discs, speedometer, ignition V-oilpan, hydraulic clutch, exhaust system, Aluminum tank, Seat, fork clamps, footrests, lamp holders, brake support, adapter front brake, adapters for the brake discs, speedometer, ignition

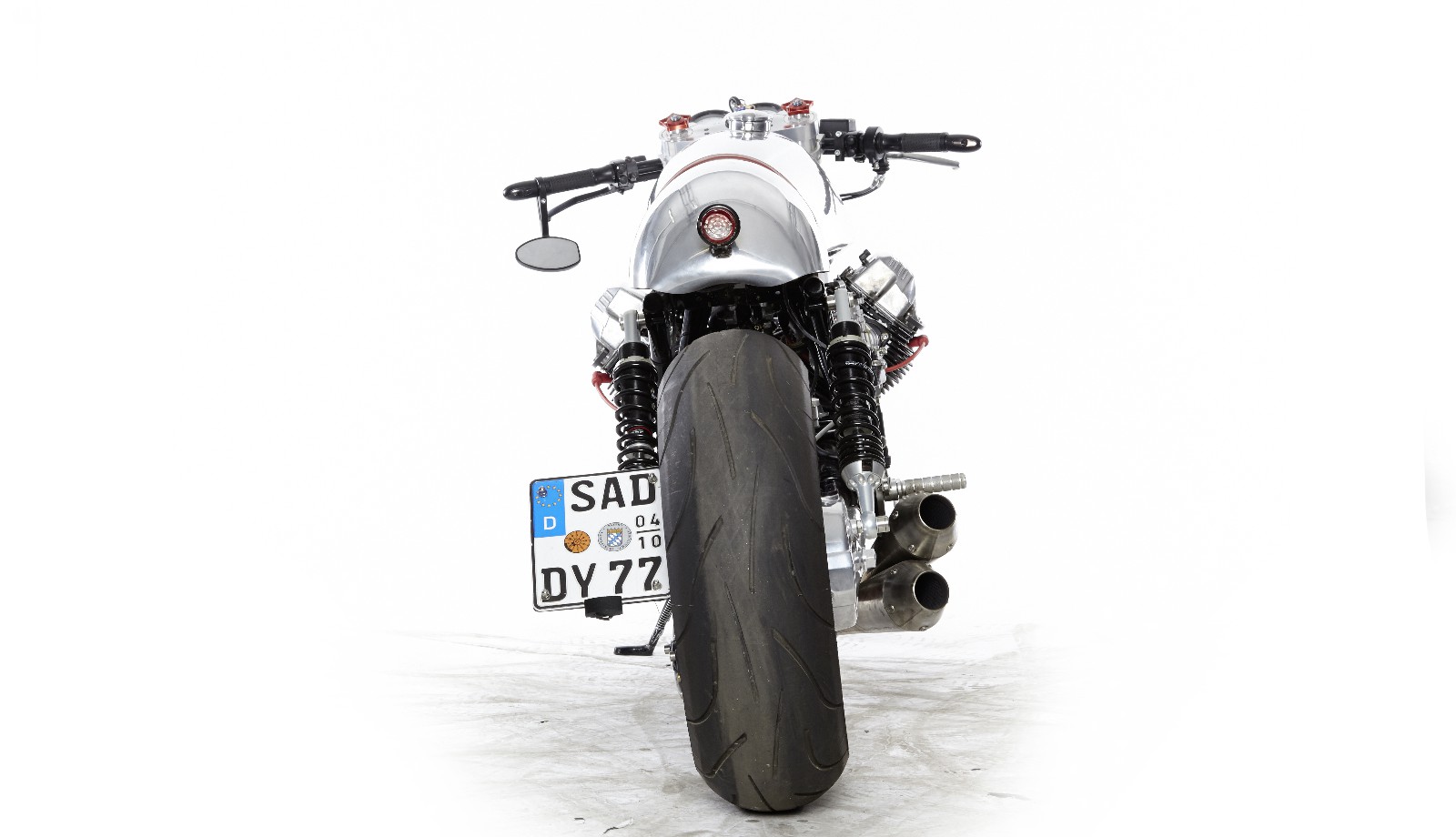

Flacheisen

"Flacheisen" were iur first customs, the bikes that put us on the map of motorcycle manufacturers. The first customs carrying the signature of our personal style. Long before the retro-cafe-racer-wave made conversions fashionable we had built about a dozen "Flacheisen" for and with friends and customers.

The one quality that can be found in all of these bikes is the combination of classic and modern components. The often heard verdict "you cannot do that to a classic Guzzi" was never meant for us. In effect our bikes sometimes polarized and drew comments both positive and critical - and that was exactly what we wanted and what helped us developing.

Anders als Café Racer auf Guzzi Basis zeigen sich die Flacheisen zwar auch abgespeckt, aber haben häufig moderne Elemente.

Unlike cafe racers our "Flacheisen" are also reduced and lighter that stock bikes, but often have modern elements. With them we started conversions to upside-down forks, the creation of seats, the reduction of the wire harness and the use of higher quality chassis parts. Our first generation of custims hast inspired many parts that have become Radical Guzzi regulars by now. Simply we have discovered while working on Guzzis and driving them that original or even aftermarket arts often were not the best solution.

"Flacheisen" were asking for improvements like the reduced cable harness, a more effective oil separator custom fit under the tank, custom made fork bridges and al lot of other parts. They also have inspired us to develop and street-legalize our own rear fork eliminating the up-and-down movement caused by the shaft drive. But that is another long story alltogether!

Coming to think of it, there is no reaso to stop building "Flacheisen":
